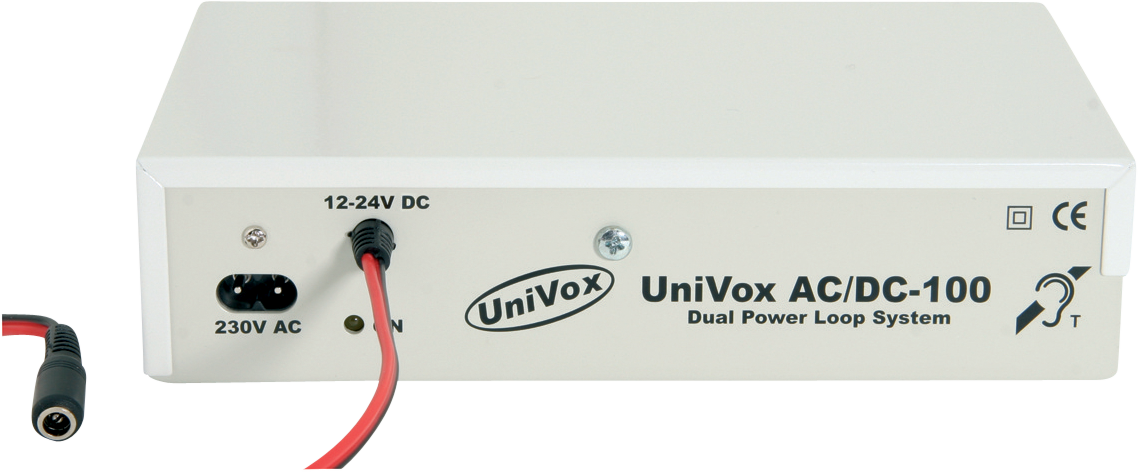

AC/DC-100
Item no.: 212020 (Discontinued product)
Loop amplifier for lift and bus areas
Contact UsUnivox AC/DC-100 is an highly efficient and compact loop amplifier with professional quality designed for areas such as lifts or buses. This intelligent and easy to use amplifier can be connected simultaneously to 230-240V AC and 12-36V DC. It switches automatically between AC and DC sources in case of power failure. Univox AC/DC-100 is a reliable amplifier with a large safety margin and with exceptionally high output current and power. The built-in two step AGC input control and self regulating AGC output provides a stable sound with high speech perception even in hard hearing environments. Univox AC/DC-100 fulfils the requirements of the international standard IEC 60118-4:2006.
Features
- Cover area 170m2 with 400 mA/m
- High output current, 17A RMS
- Constant output current
- Automatic backup using both AC and DC
- Three inputs giving several and various connection possibilities
- Dual Action AGC control provides high speech perception
- Short circuit safe
- Automatic power fuse
- Easy to connect with a removable screw terminal connector
- Intelligent AGC controlling both output voltage and output current
- Three LEDs indicating power connection, input signal level and loop function
- Separate treble control (metal loss compensation)
- Seperate bass control
- High quality well proven Univox technique
